 Copy, Export & Import

2025/08/15 • 3 min. to read

In this topic

• Copy
• Export
• Import

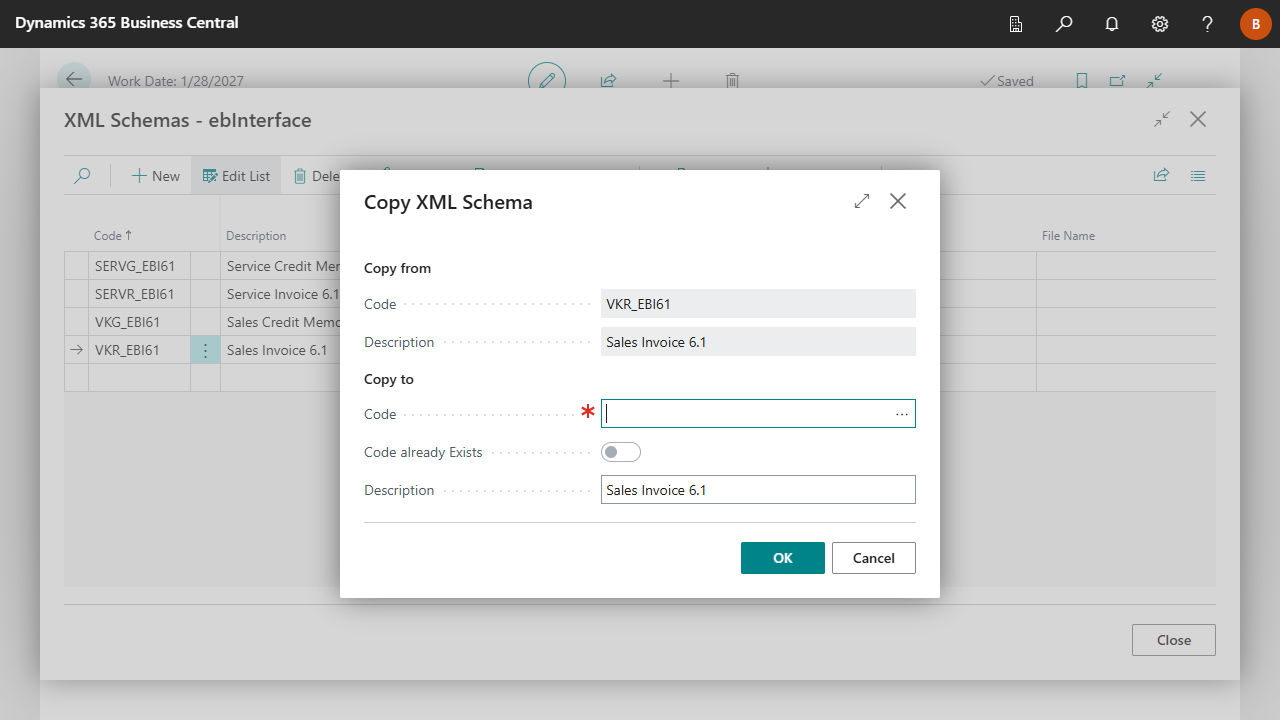

Copy

Via this action, a copy of the schema can be created.

• Copy from

  Code	Specifies the code of the existing schema to copy from.
  Description	Specifies the description of the existing schema.

  Copy to

  Code	Specifies the code for the new schema.
  Code already Exists	Specifies whether a schema with the code already exists. An additional confirmation is necessary for replacing a schema.
  Description	Specifies a description for the new schema.

Export

This action can be used to export a schema to a file or multiple selected schemas to a zip file.

• Export from

  Code	Specifies the code of the schema to be exported.
  Description	Specifies the description of the schema to be exported.
  Selected Schemas	Specifies the number of selected schemas. The field is only displayed when schemas are exported to a zip file.

  Export to

  File Name

  Specifies the name for the file. Note NAVAX XML Schema files have the file extension .ncxmls. NCXMLS stands for NAVAX Consulting XML Schema.

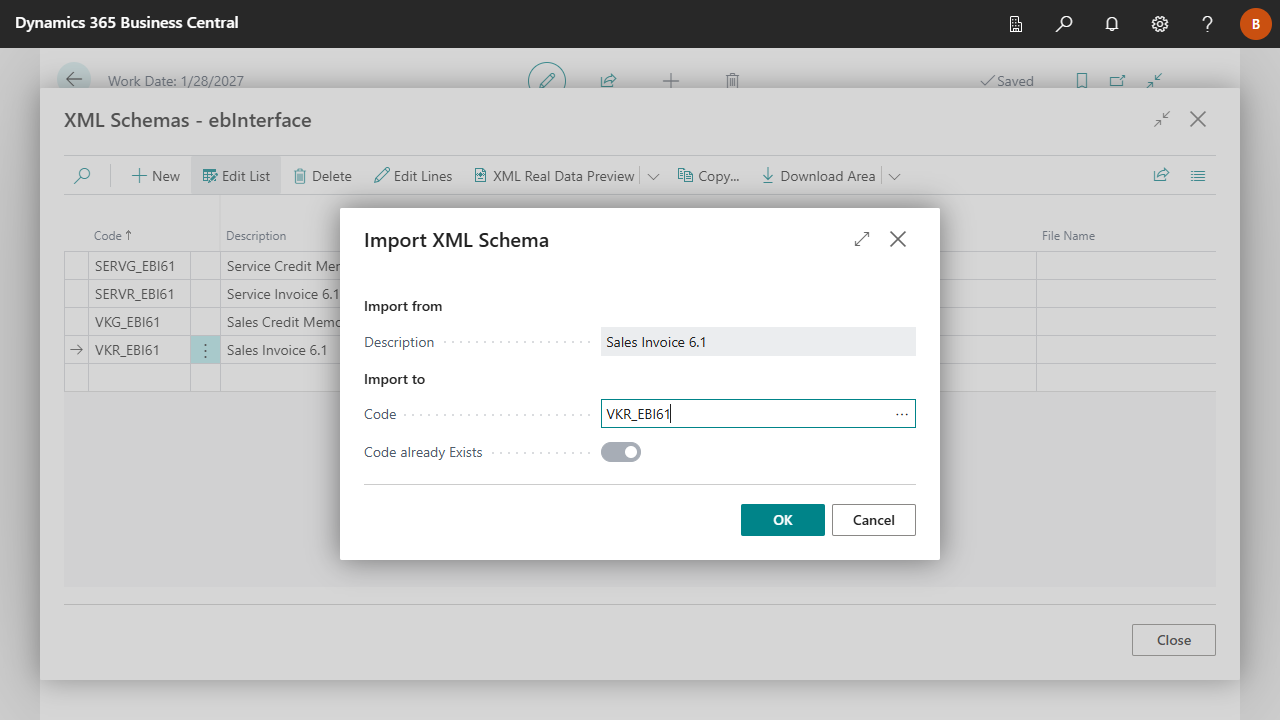

Import

This action can be used to import a schema from a file or multiple schemas from a zip file.

• Import from

  Progress	Shows the progress when importing from a zip file. The field is only displayed when schemas are imported from a zip file.
  Description	Specifies the description of the schema to be imported.

  Import to

  Code	Specifies the code for the new schema.
  Code already Exists	Specifies whether a schema with the code already exists. An additional confirmation is necessary for replacing a schema.
  Import all with specified Code	Specifies whether all schemas for which a code is specified should be automatically imported with that code if no schema with that code yet exists. The field is only displayed when schemas are imported from a zip file.
