Provides the functionality to control a ZPL printer via Zebra Cloud. Current Version: 1.0.1.0as of Business Central 20.
Manual
Creation date: 2024/05/17 The current version of this manual can be found at:
☰ Contents
Allgemein
App ZPL Printer Management Base The app ZPL Printer Management Base defines tables and pages, to declare zpl printers and zpl layouts. The user can define the zpl printer to use for a distinct layout & username combination (similar to the Printer Selection in Business Central)...
App ZPL Printer Management Zebra Cloud With the ZPL Printer Management, labels with the Zebra layout language ZPL can be printed out via the Zebra Cloud...
Einrichtung
Zebra Cloud Connect Accounts Multiple Zebra Cloud credentials can be set up in the Zebra Cloud Connect Accounts...
Zebra Cloud Connect Printer Mapping The Zebra Cloud Connect Printer Mapping page is invoked when the printers are retrieved from Zebra Cloud...
Aufgaben
Working with the App First, a user account must be created in the Zebra Cloud...
The app ZPL Printer Management Base defines tables and pages, to declare zpl printers and zpl layouts. The user can define the zpl printer to use for a distinct layout & username combination (similar to the Printer Selection in Business Central).
Furthermore, this app defines functions to establish a connection with a specified printer, retrieve a specified zpl layout from the database, etc.
The Zebra Cloud Connect Printer Mapping page is invoked when the printers are retrieved from Zebra Cloud.
Because only the serial number can be set up in the Zebra Cloud, the other information must be entered manually when retrieving the printers from the Zebra Cloud.
In this view you can then select whether printers should be added, updated or deleted.
Fields
Code
Specifies the code of the zpl printer in business central.
Description
Specifies the description of the zpl printer in business central.
Add
Specifies if you want to add the printer to the list.
Printer Exists
Specifies the value of the Printer Exists field.
Original code
Specifies the original code.
Zebra Cloud Connect Id
Specifies the Zebra Cloud Connect Id.
Docs / NVXZPLZC ZPL Printer Management Zebra Cloud / Aufgaben Working with the app
First, a user account must be created in the Zebra Cloud.
Note
There may be costs in the Zebra Cloud itself. Intended for development purposes, there is a free service plan that only supports a limited number of calls per day.
For more information, see SendFileToPrinter Payment Plan
For more information, see Getting Started
Please follow the instructions at Getting Started.
There you will create an API key and this will then be required in Business Central.

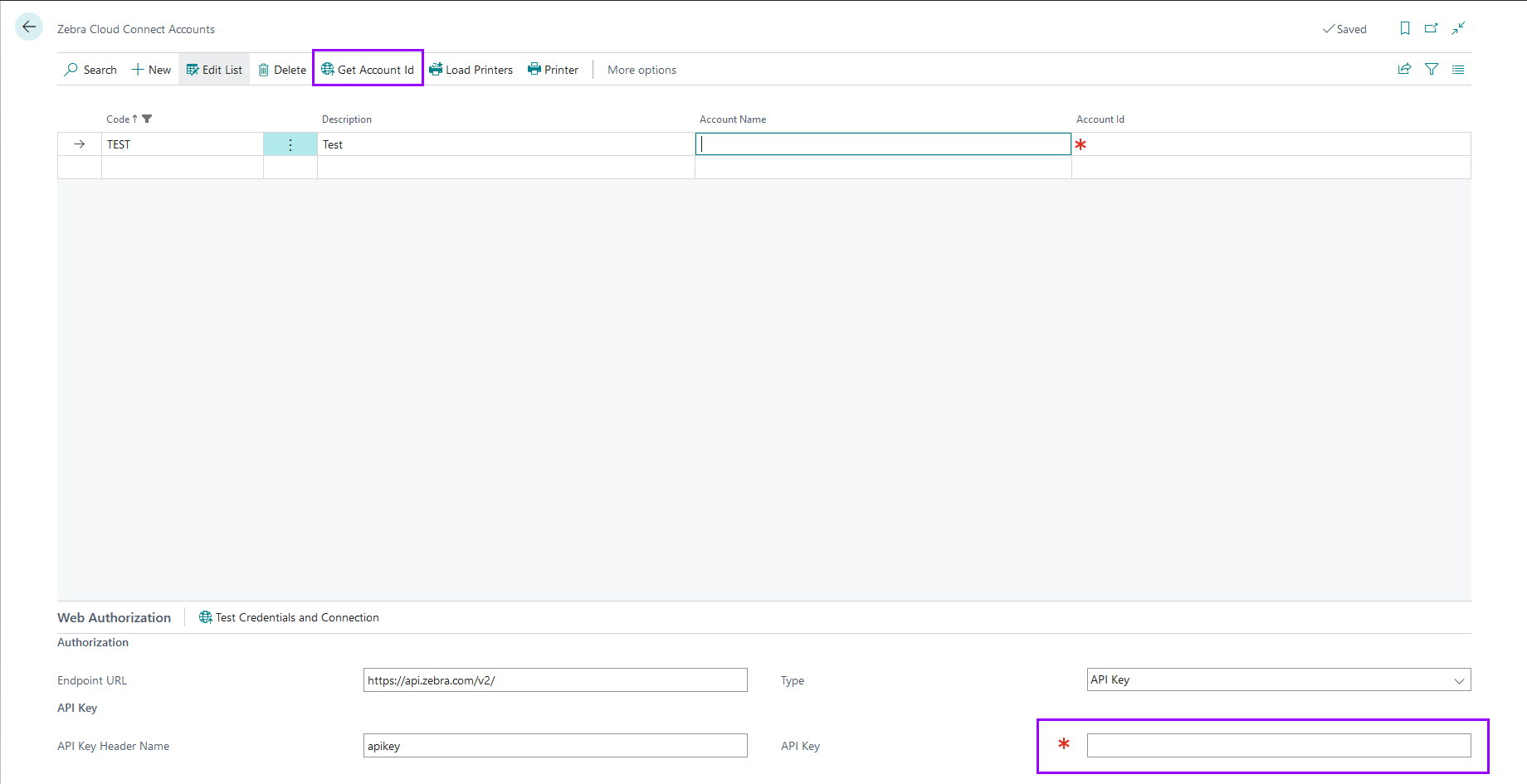

Create a new account under Zebra Cloud Connect Accounts.
First you have to enter the received API key.
You can then use Read account ID to enter the account name and account ID of your account from the Zebrea Cloud in Business Central. This is done via the stored authorization via API key.
The endpoint URL and API key header name are filled in automatically.
After the account data has been entered, the printers must be read using Load Printer.
If printers are available, the mask
Would you like to know what has changed in the extension? Below you'll find an overview of the new features and changes made in the updates.
Build-Overview in DevOps
NVXZPLZC 1.0.1.0
as of Business Central 20 2023/07/20
Corrections
Dependency on Business Central 20.1 just like ZPL Printer Management Base
NVXZPLZC ZPL Printer Management Zebra Cloud
First you have to enter the received API key.
You can then use Read account ID to enter the account name and account ID of your account from the Zebrea Cloud in Business Central. This is done via the stored authorization via API key.
The endpoint URL and API key header name are filled in automatically.
After the account data has been entered, the printers must be read using Load Printer.
If printers are available, the mask
