On the Excel Evaluation Card page, a Codeunit for the evaluation can be specified in the Codeunit to Run field. This can be used, for example, to display notes or to recalculate or update data directly before the evaluation is executed.
Edit Evaluations, General, Edit Excel Evaluation
In order to ensure that only Codeunits can be executed that were also created for the Excel Report Builder, they must be additionally included or unlocked via an EventSubscriber.
The Excel Report Builder calls the Codeunit for an evaluation via the OnRun() trigger of the Codeunit.
Additional information for the user and the Call Location of the Codeunit is specified via the EventSubscriber.
Possible Call Locations

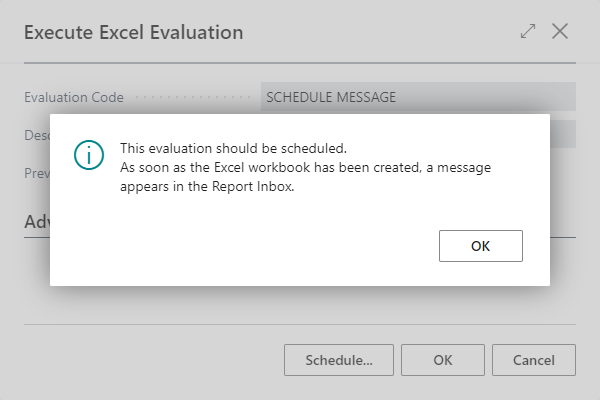

OnShowExecutePage
When the execute page is displayed.
This position is particularly suitable for displaying users general information about the evaluation.
Example:
OnShowFilterPage
When the filter page is displayed.
Similar to OnShowExecutePage only directly after the execute page. The call is made even if no filter page is displayed.
OnBeforeExecute
Before the evaluation is executed.
This position is particularly suitable for displaying a confirmation and/or for recalculating/updating data.
Example 1
As a simple example, you can specify the Codeunit 70171837 "NCE Show Schedule Message" in an evaluation.

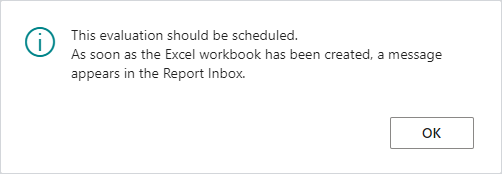

This Codeunit is delivered with the Excel Report Builder and causes the following additional message to be displayed when the evaluation is executed:
Implementation
The Codeunit is structured as follows and can be used as a template for your own requirements:
codeunit 70171837 "NCE Show Schedule Message"
{
trigger OnRun()
begin
if (CurrentClientType = ClientType::Background) then
exit;
Message(ScheduleMsg);
end;
var
ScheduleMsg: Label 'This evaluation should be scheduled.\As soon as the Excel workbook has been created, a message appears in the Report Inbox.', Comment = 'DEU="Diese Auswertung sollte als Plan ausgeführt werden.\Sobald die Excel-Arbeitsmappe erstellt wurde, erscheint eine Meldung im Berichtseingang."';
[EventSubscriber(ObjectType::Codeunit, Codeunit::"NCE Runnable Codeunit Mgt.", 'OnAddAllowedCodeunitsToRun', '', false, false)]
local procedure NCERunnableCodeunitMgt_OnAddAllowedCodeunitsToRun(var TempNCERunnableCodeunit: Record "NCE Runnable Codeunit" temporary)
var
HelpTxt: Label 'This Codeunit causes the following additional message to be displayed when the evaluation is executed:\\', Comment = 'DEU="Diese Codeunit bewirkt, dass beim Ausführen der Auswertung zusätzliche folgende Meldung angezeigt wird:\\"';
begin
TempNCERunnableCodeunit.Add(Codeunit::"NCE Show Schedule Message", HelpTxt + '"' + ScheduleMsg + '"', "NCE Codeunit Call Location"::OnShowExecutePage);
end;
}
Via TempNCERunnableCodeunit.Add the Codeunit will be included or unlocked in the Excel Report Builder.
Parameter
CodeunitID
Important
The first parameter CodeunitID determines which Codeunit it is.
TempNCERunnableCodeunit.Add(Codeunit::"NCE Show Schedule Message", ...
The value must match the name of the Codeunit.
CodeunitHelpText
This text is displayed when selecting the Codeunit to Run in the Excel Evaluation Card.
Information about the purpose and usage of the Codeunit should be provided here.
CodeunitCallLocation
Determines where the Codeunit is called.
Example 2
Another simple example is the Codeunit 70171836 "NCE Confirm Long Run Time".

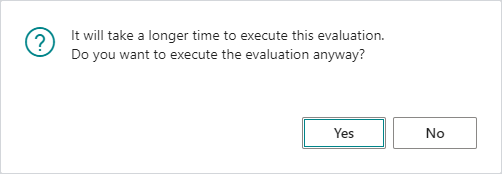

This Codeunit is also delivered with the Excel Report Builder and causes the following additional confirmation to be displayed when the evaluation is executed:
Implementation
The Codeunit is structured as follows and can be used as a template for your own requirements:
codeunit 70171836 "NCE Confirm Long Run Time"
{
trigger OnRun()
var
ConfirmManagement: Codeunit "Confirm Management";
begin
if (CurrentClientType = ClientType::Background) then
exit;
if not ConfirmManagement.GetResponseOrDefault(LongRuntimeMsg, true) then
Error('');
end;
var
LongRuntimeMsg: Label 'It will take a longer time to execute this evaluation.\Do you want to execute the evaluation anyway?', Comment = 'DEU="Das Ausführen dieser Auswertung wird länger dauern.\Möchten Sie die Auswertung trotzdem ausführen?"';
[EventSubscriber(ObjectType::Codeunit, Codeunit::"NCE Runnable Codeunit Mgt.", 'OnAddAllowedCodeunitsToRun', '', false, false)]
local procedure NCERunnableCodeunitMgt_OnAddAllowedCodeunitsToRun(var TempNCERunnableCodeunit: Record "NCE Runnable Codeunit" temporary)
var
HelpTxt: Label 'This Codeunit causes the following additional confirmation to be displayed when the evaluation is executed:\\', Comment = 'DEU="Diese Codeunit bewirkt, dass beim Ausführen der Auswertung zusätzliche folgende Bestätigung angezeigt wird:\\"';
begin
TempNCERunnableCodeunit.Add(Codeunit::"NCE Confirm Long Run Time", HelpTxt + '"' + LongRuntimeMsg + '"', "NCE Codeunit Call Location"::OnBeforeExecute);
end;
}
Runnable Codeunits
